WTC2 E Face Perimeter Pulls in, Breaks Along Bolt Seam
High resolution video shows that the line of perimeter columns along the
east face of WTC2 which bent inwards during the earliest moments of
collapse initiation broke along bolt connections after being pulled in.
There is no evidence that the perimeter buckled inwards. There is
substantial evidence that the east perimeter broke into an upper and
lower sheet cleanly along a zig-zag line of bolt connections with no
permanent column deformation or buckling. The action of the break is
shown:
We extract the most informative frame images from frames 11650 to 11760
of the high resolution version of the WTC2 compilation video here. This corresponds to the 4 second interval, 6:29 to 6:33 in the video. The high resolution download is here
These images show:
1) Increased inward bending until frame 11070
2) The visible columns become straight again after that point. This
means that the tension that caused the columns to bend has disappeared.
The upper columns have broken, or "snapped" from the lower visible
columns.
3) The visible columns were never bent past their elastic limit before
"snapping" from the upper columns. The bending caused little permanent
deformation and the columns quickly straightened up again when the cause
of tension was removed.
Part 2 of this presentation, using other portions of the same video compilation linked earlier, will show
4) When this lower sheet of columns fell away from the building a few
moments later, it's entire upper edge was clearly visible from multiple
angles, showing that the break between upper and lower happened
completely along bolt lines in a zig-zag pattern over 3 floors.
All columns along the top edge appeared very straight as they fell from
the building. There was no evidence of a single buckled columns along
the top edge of the falling sheet.
All images are in chronological order.

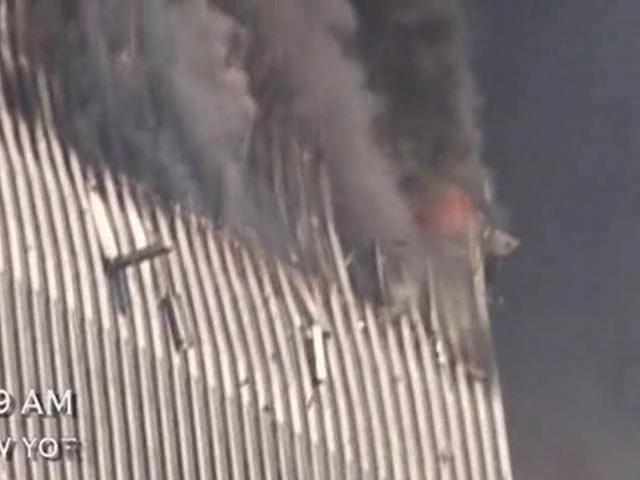

Frame 11653

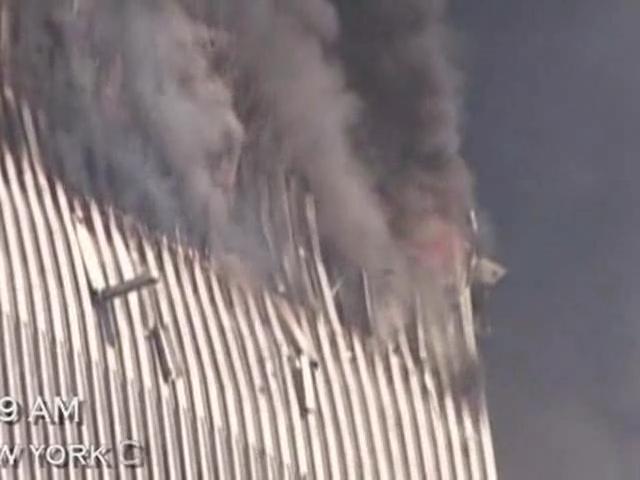

frame 11659
frame 11665

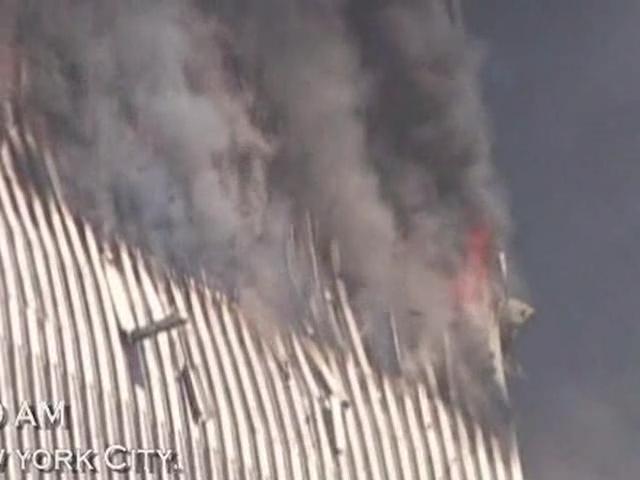

frame 11671

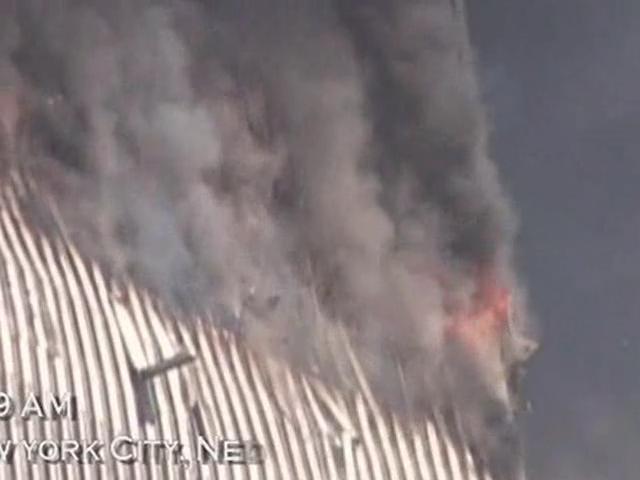

frame 11679

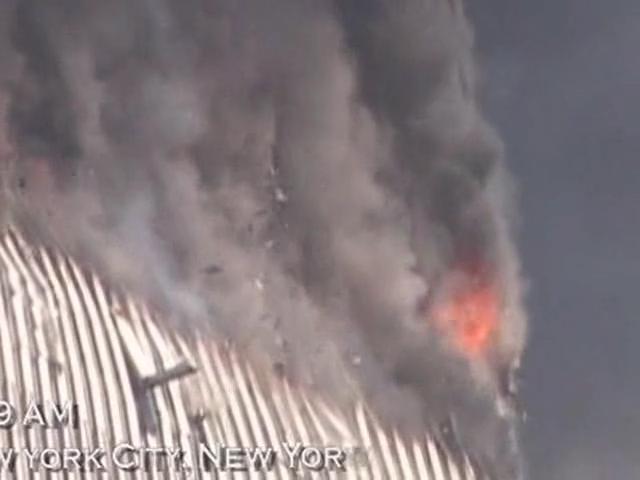

frame 11690
frame 11695
frame 11702
In the image above the bending reaches a maximum inward displacement.
In the following images we see the visible columns quickly straighten.
There is no longer the evidence of increased inward bending. Instead,
there is a release of tension as the visible columns break away from
their connections above.
Please observe as the visible columns return to their former (straight) shape.

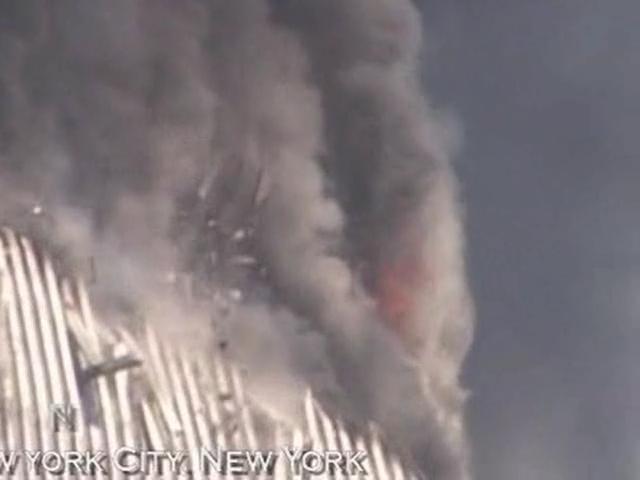

frame 11707

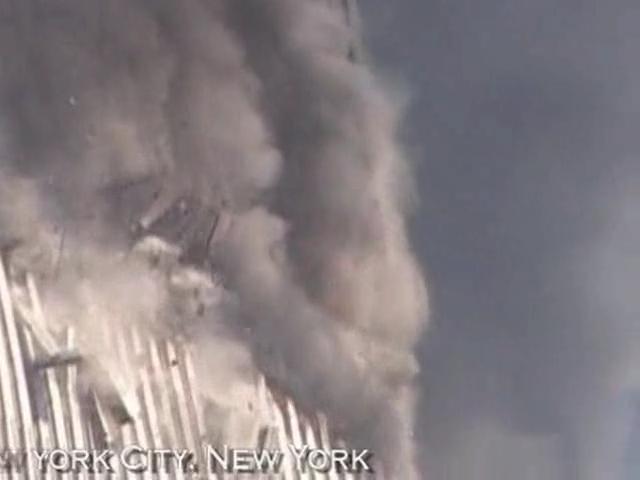

frame 11716
The image below shows the columns once again quite straight.
As they return to their former shapes and positions we see an open space, a empty hole is left where the upper columns once were.

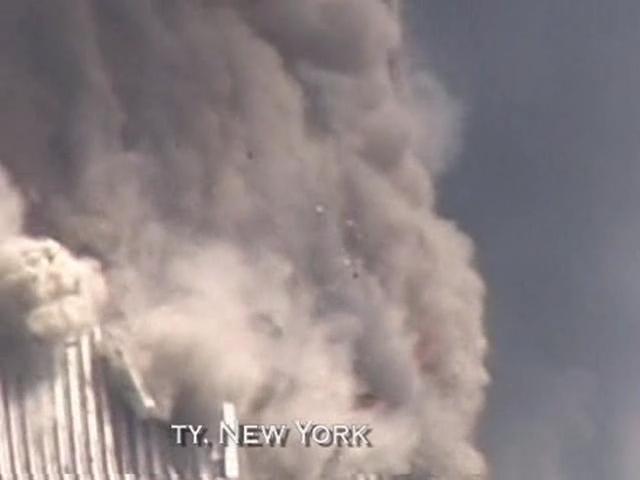

frame 11736
frame 11741
In the last image in our short but educational presentation we see the
camera has zoomed out allowing us to see how the upper sheet of columns
has folded into the building and inside the lower straight visible columns.
Notice the obvious difference in angle between the upper and lower right
corners of the building. The upper part is folding within the lower
part.
frame 11756
Part 2 of this presentation will identify the line along which the east
perimeter "snapped" into upper and lower. I will show that it was a
clean, unbuckled break completely along bolt lines.

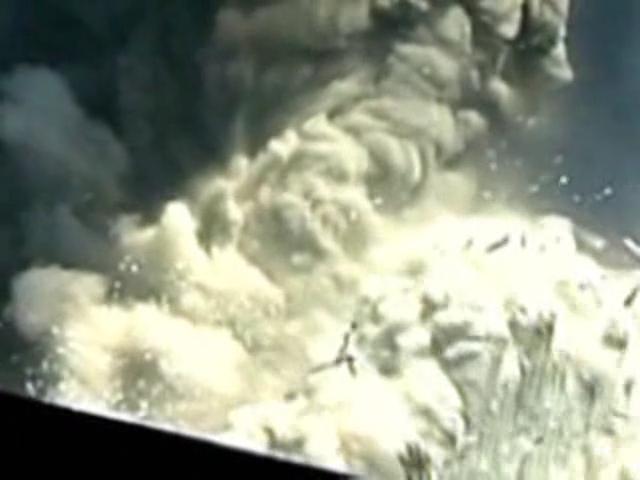

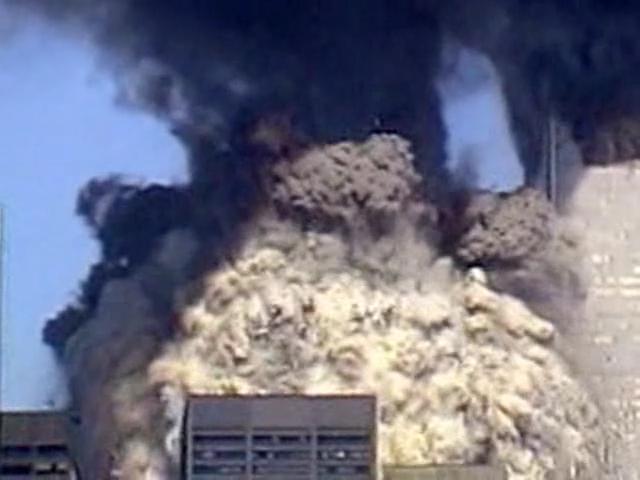

The two images below, of the top edge of the lower sheet moving
outwards, show a small taste of what the type of break I mean. The
first image shows how clean and unbuckled the break was, while the
second image hints that the pattern stretched across the entire east
face, from the NE to the SE corners of the building.

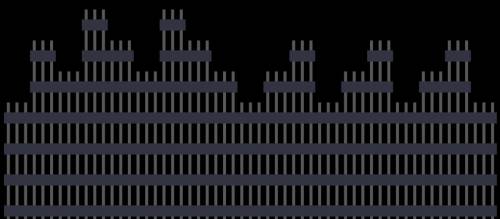

The upper edge of the sheet is marked in the graphics:
It is the first stepped pattern of bolted connections above the 75-77 Stiff MER panels.
The orange line marks a row of welded and bolted conections. They prove
much stringer than the connections along the stepped pattern shown.
